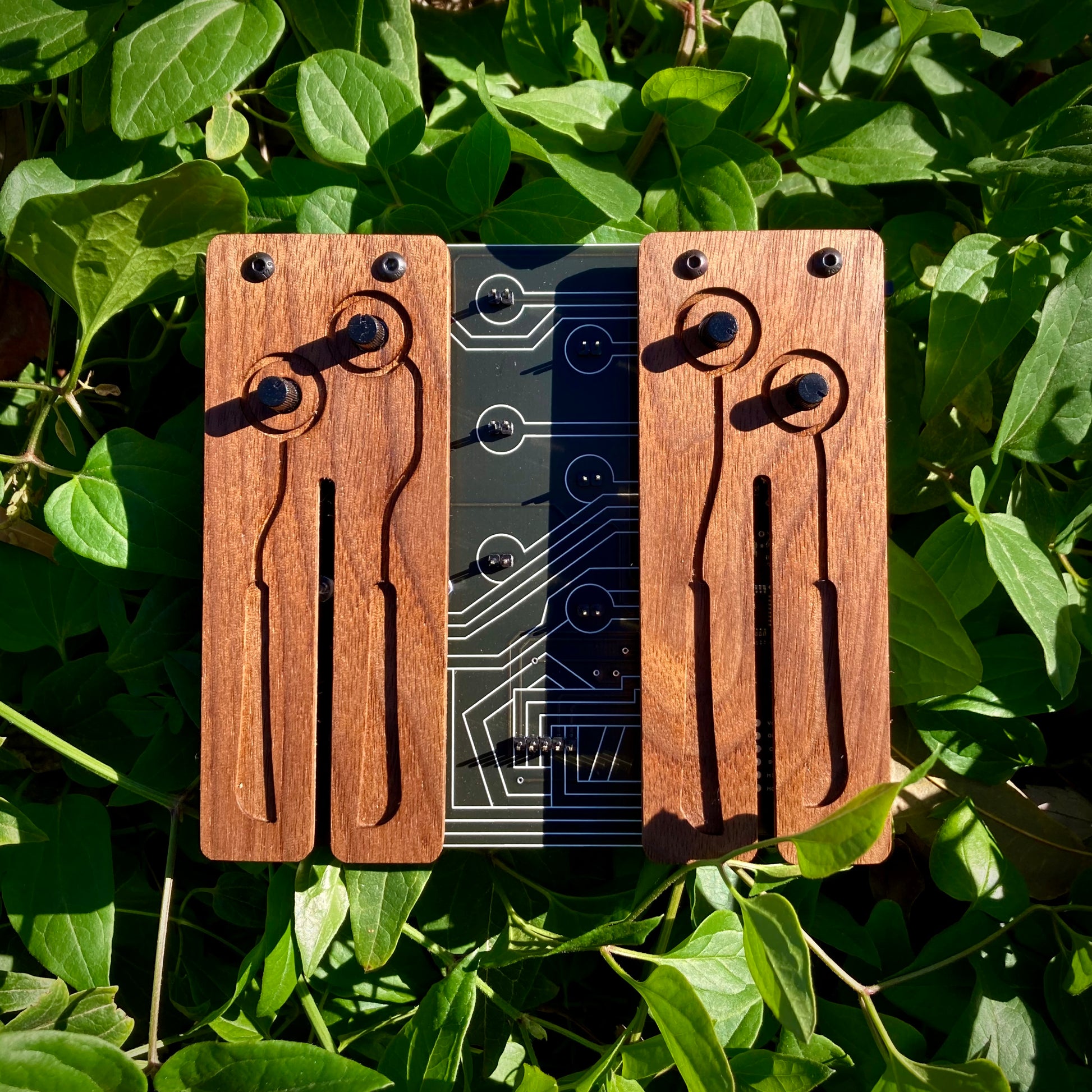

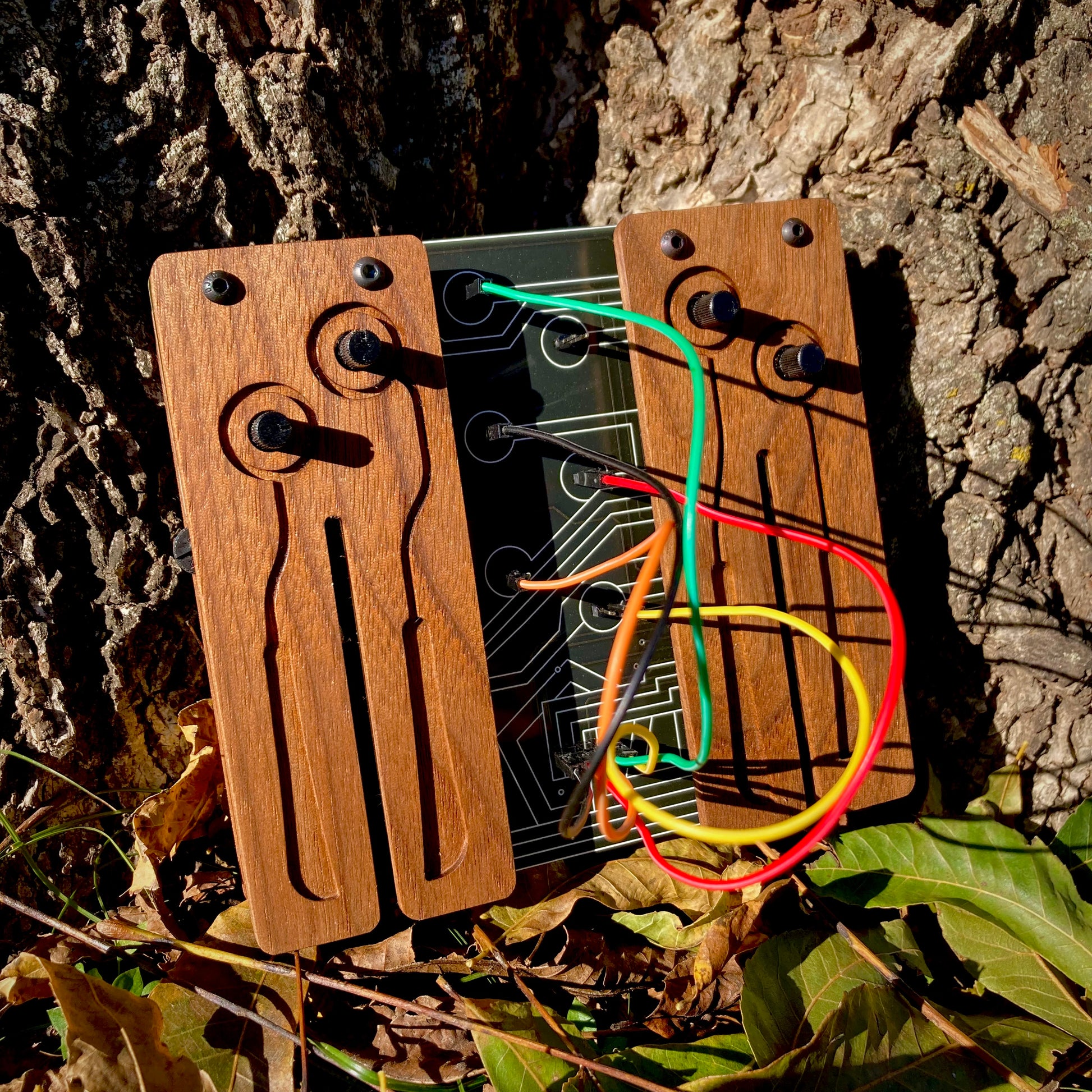

The Multi Synth is a family-friendly digital synthesizer that can produce an Amazing variety of sounds powered by its 6 Sound Synthesis Modes. Each of these 6 Synthesis Modes transform the devices 4 knobs, 4 keys, and center patch bay into new control schemes.
The most important thing to know about this instrument is that it requires 0% knowledge of synthesizers or synthesis concepts to Pick up, Patch, and Play.

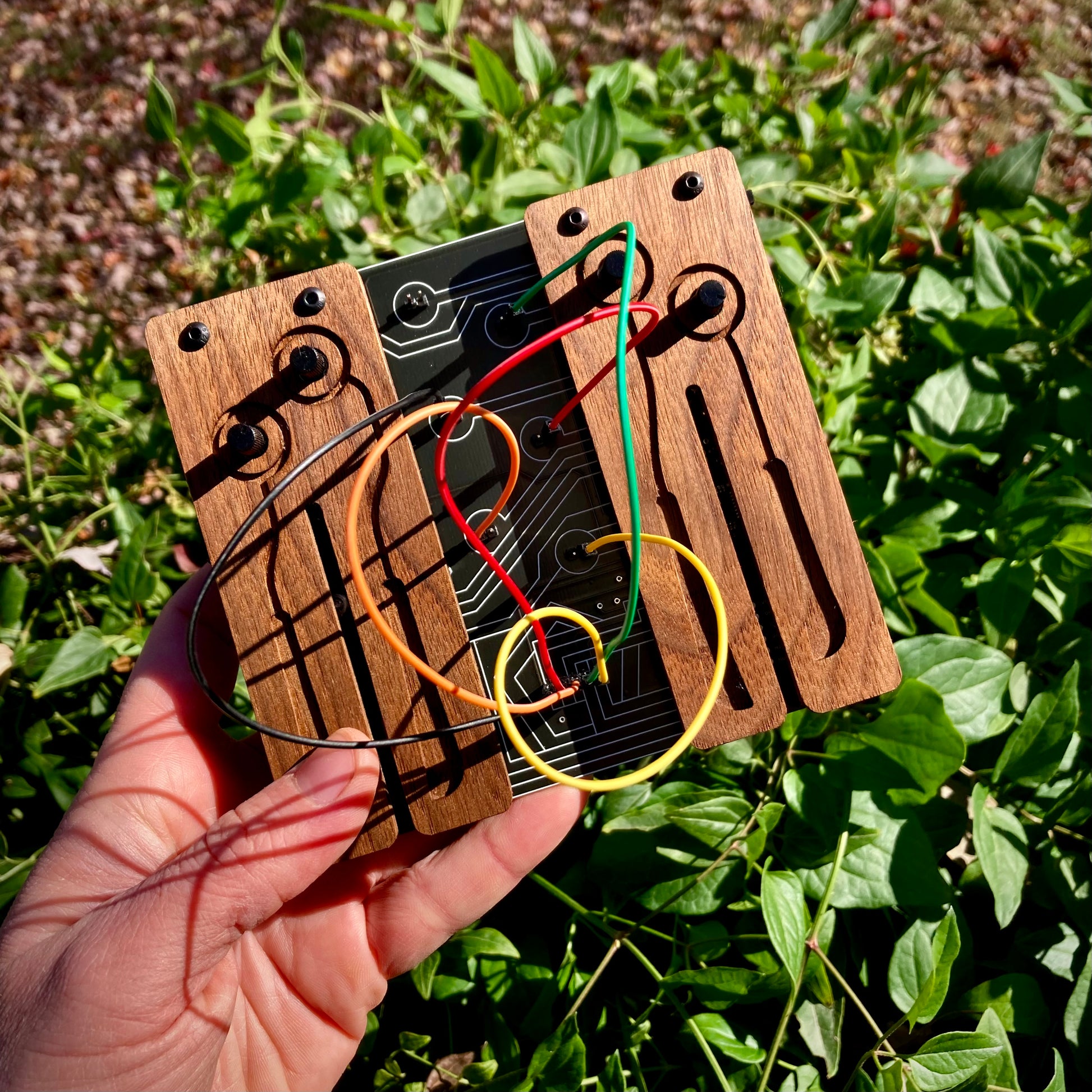

The Patch Bay in the center of the device is arranged in such a way that ANY connection made from one of the 6 Smaller Output Jacks into the 1 Larger Input Jack will make an Immediate and interesting change to the current sound. This simple concept allows for someone without any knowledge of synthesis terminology to be able to Patch and Play Instantly!

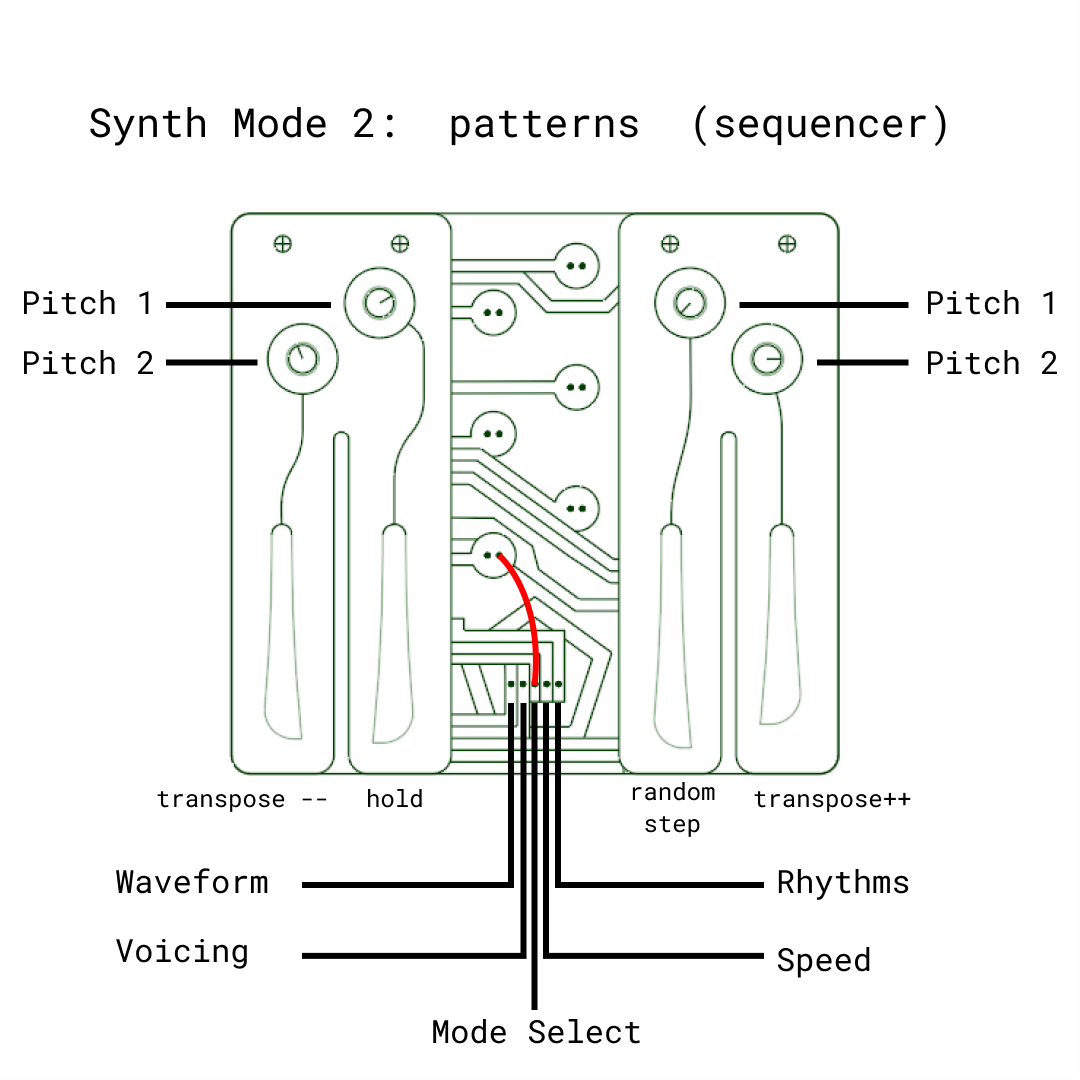

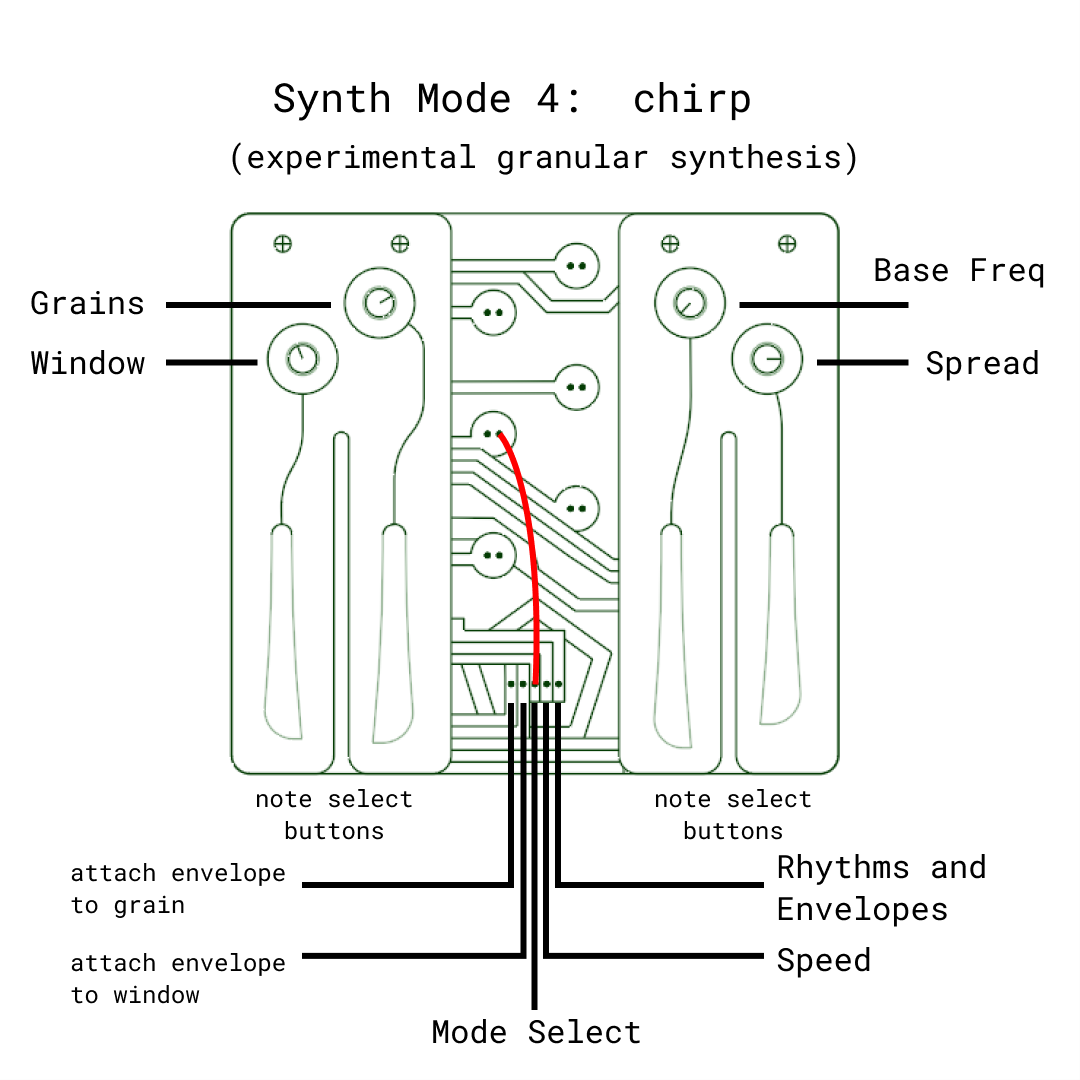

The 5 Input Holes on the large Input Jack located in the patch bay represents the inputs to these settings:
-WaveForm -Voicing -Mode Select -Speeds -Rhythms

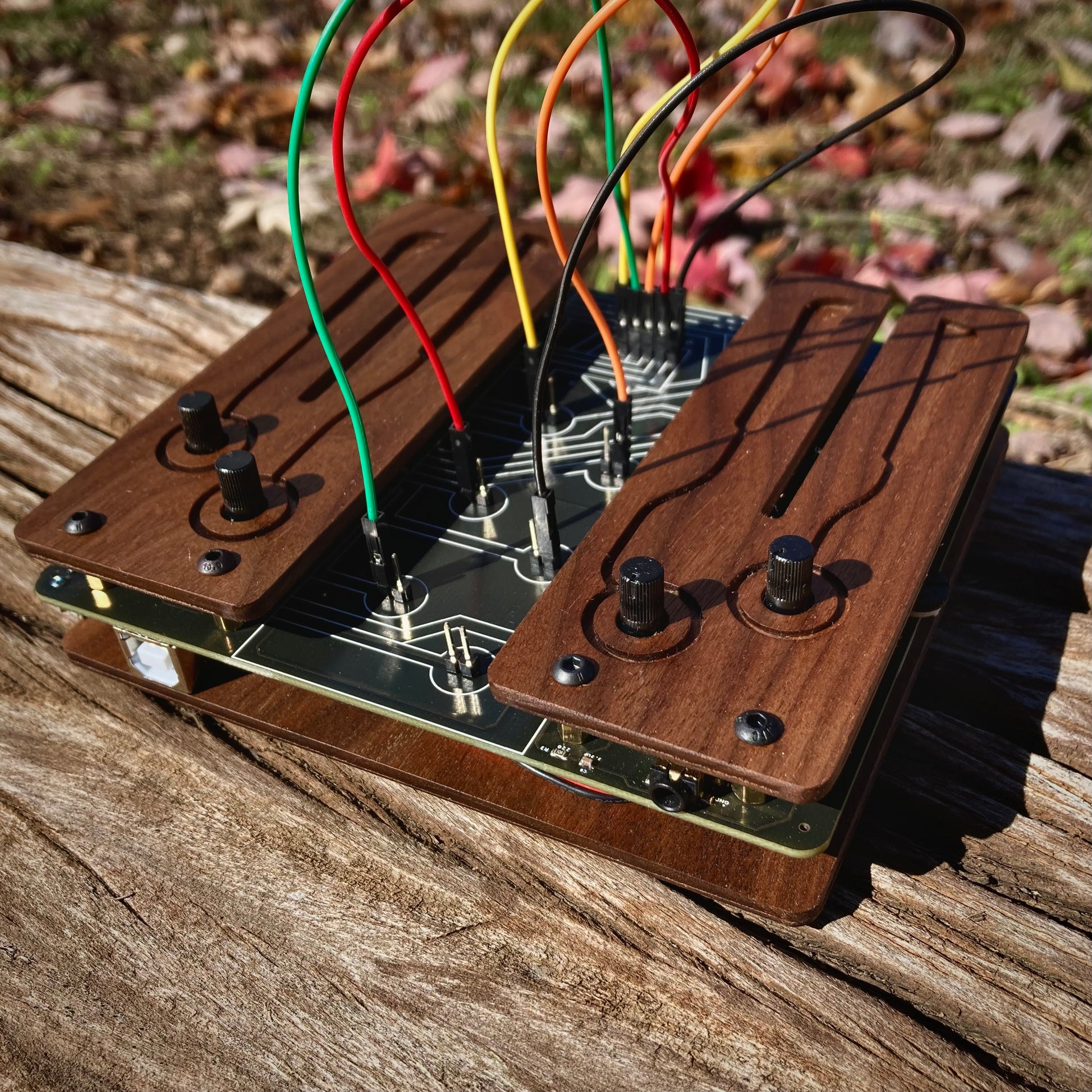

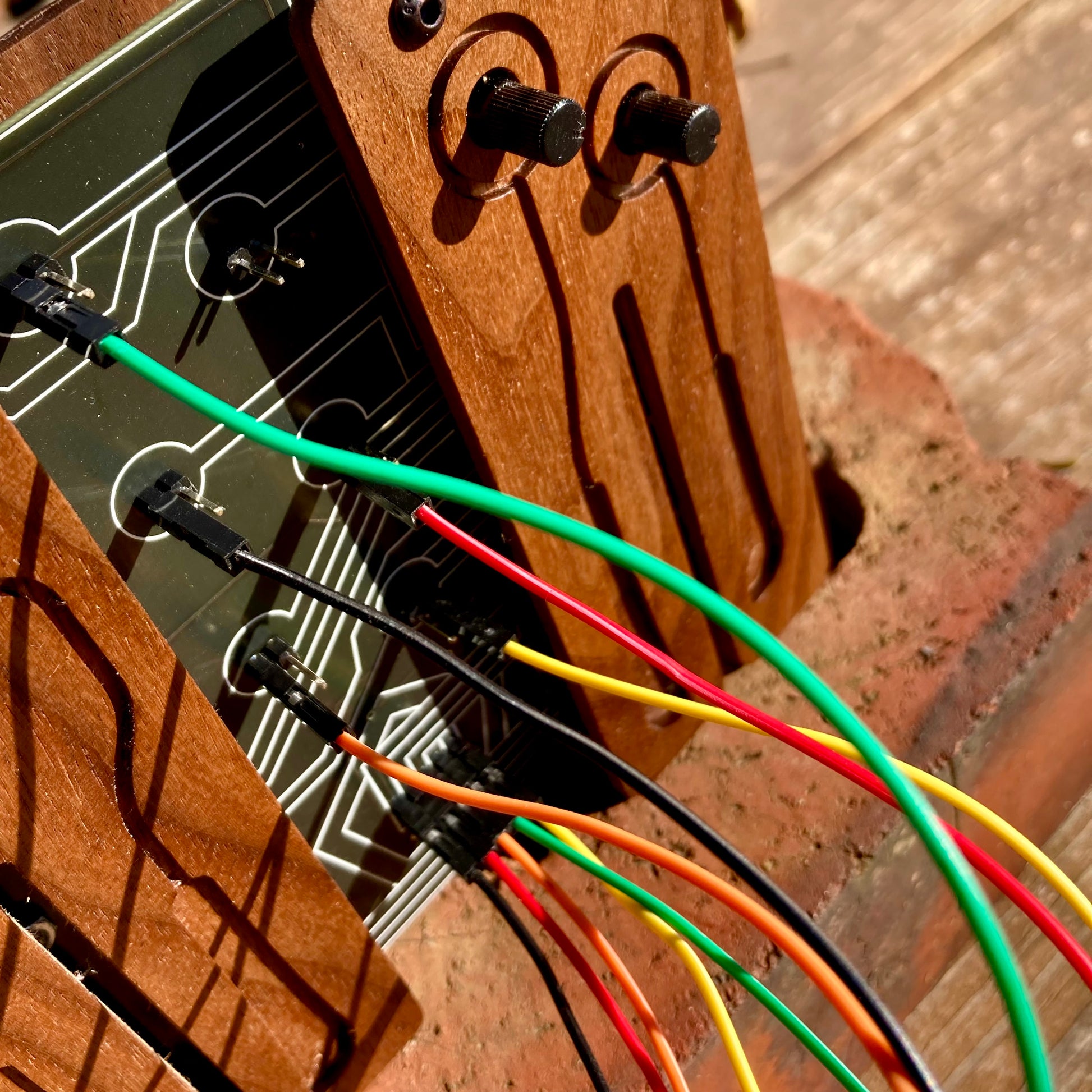

Use the Included Patch Wires to Connect the 6 output option jacks into any of the 5 Input Holes. Each of the 6 smaller output jacks will select a unique option for that parameter.
:::Waveforms - options 1-6 represent 6 different waveform shapes that can be selected
:::Voicing - options 1-6 each represent different ways to group and tune the 8 oscillators that may be voiced simultaneously. These 8 oscillators can be tuned in octaves or tuned into chords.

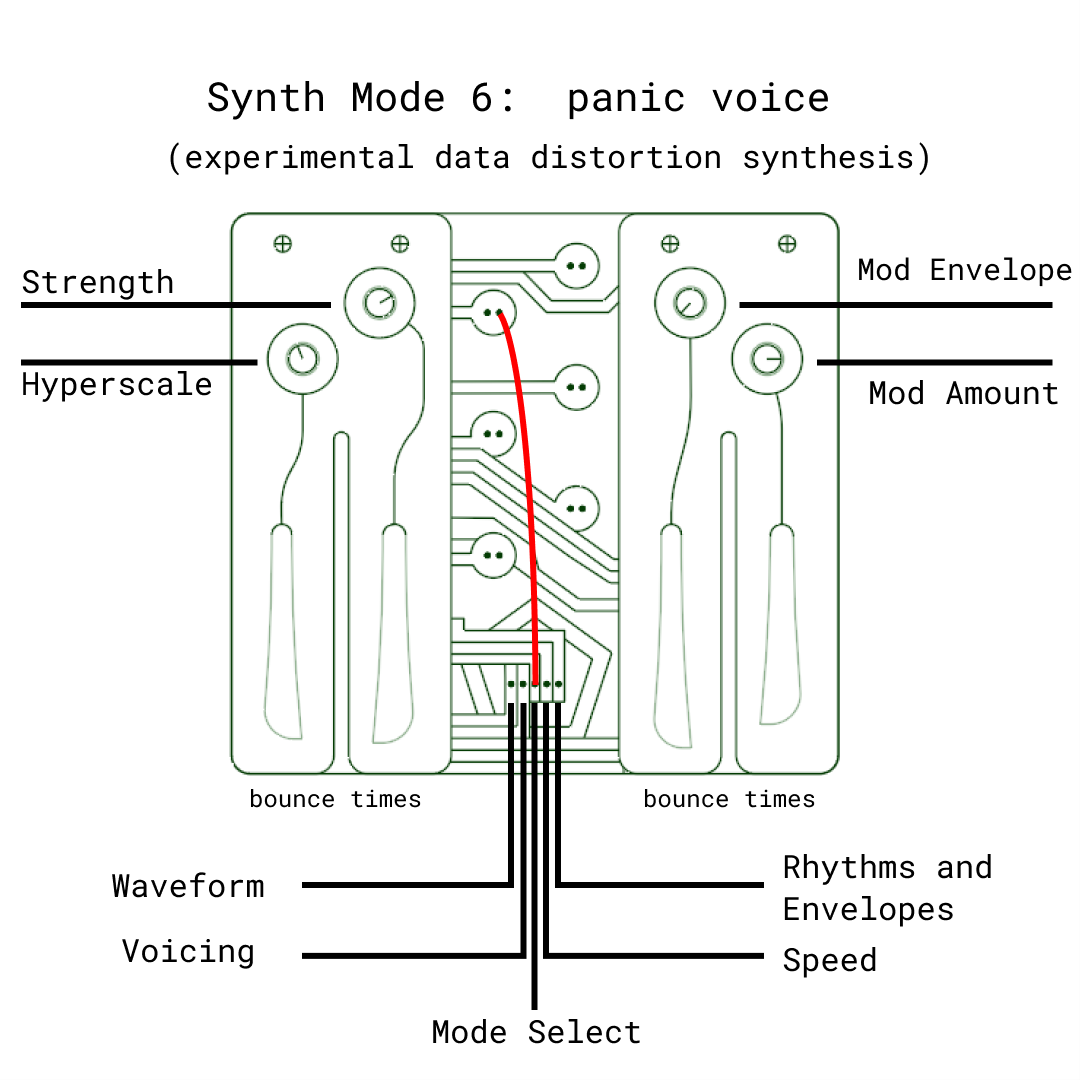

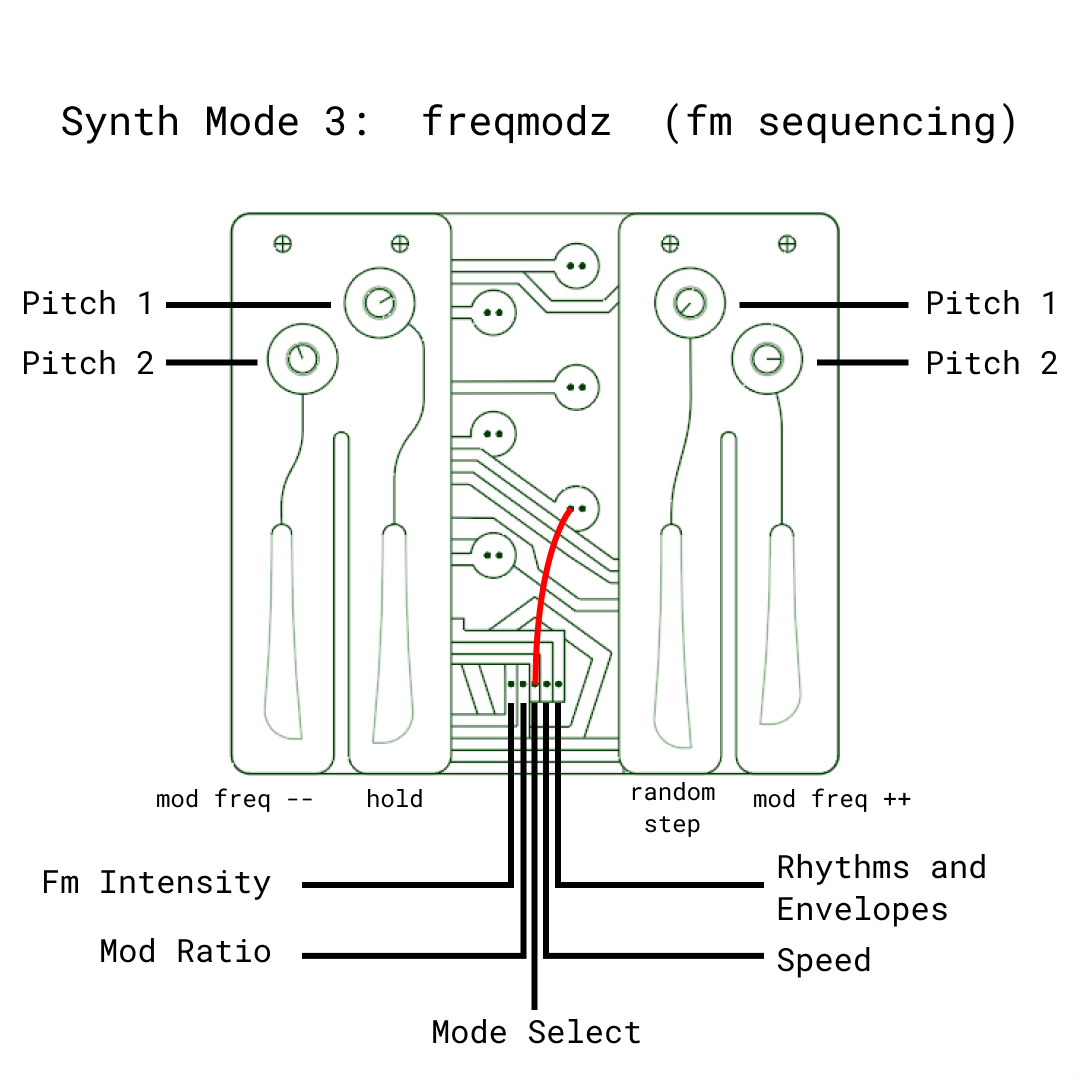

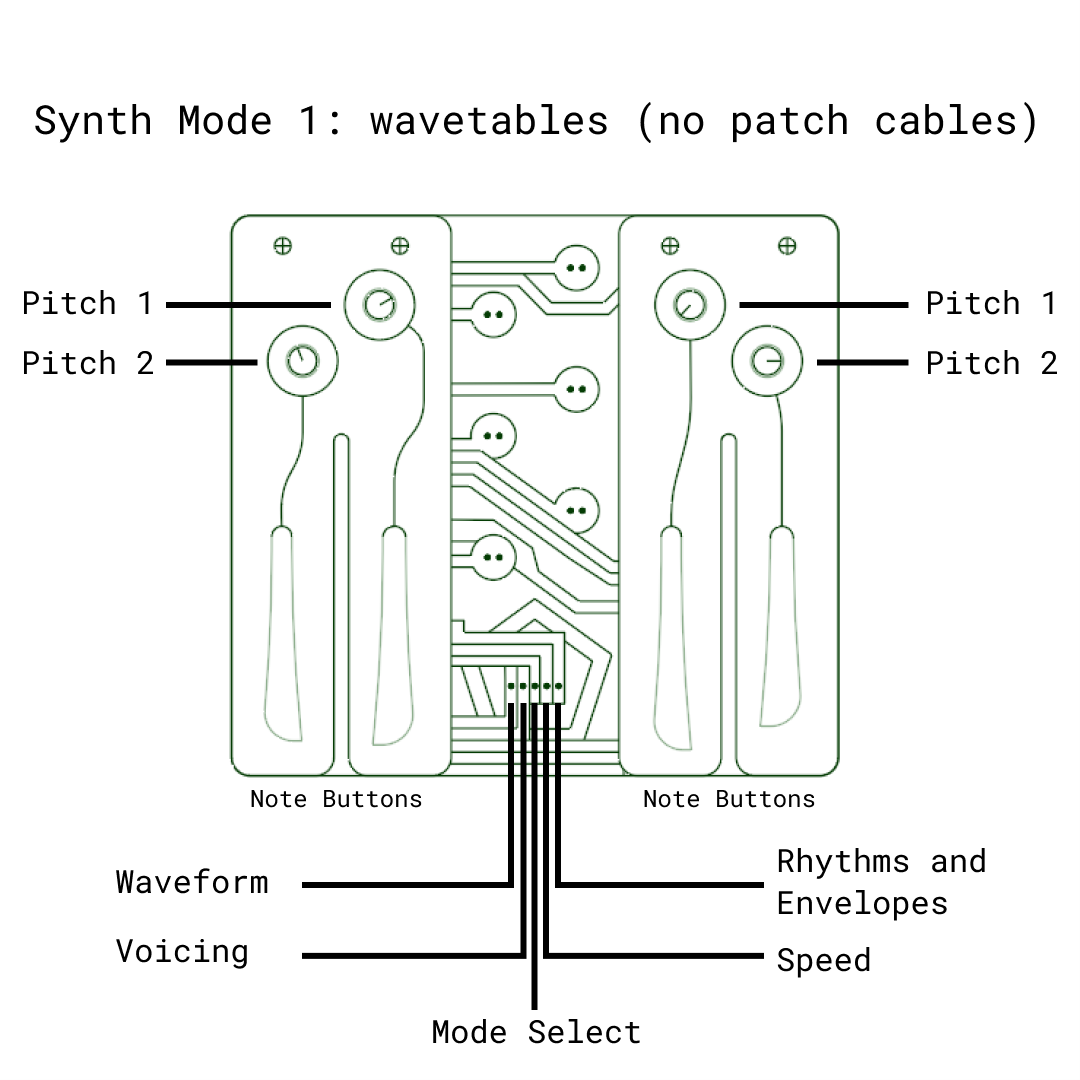

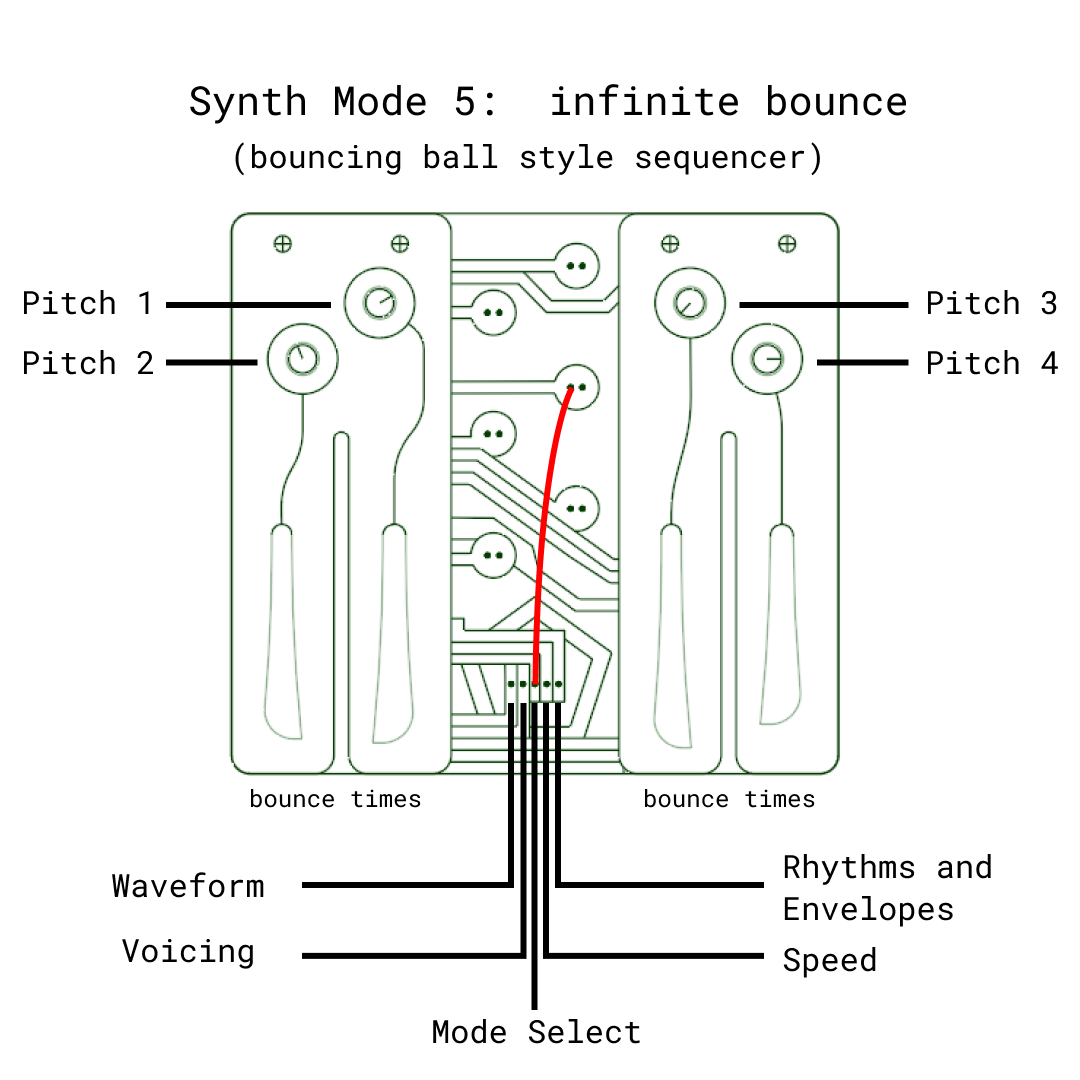

:::Mode Select - This Input Hole selects the Synthesis Mode for the entire instrument
:::Speeds - Sets new Sequencing Speeds and Envelope Settings
:::Rhythms - Selects between different Rhythmic patterns to apply to your synth voice or running sequencer.
